PRODUCTS & SERVICES
A.T. CRANE, certified by ISO 9001:2015 quality standards. We are an expert and your best partner in terms of designing, manufacturing, installaling, and after-sales services for electric wire rope hoist, electric chain hoist, and overhead traveling crane for industrial factories as European standard quality. We are recognized in the overhead traveling crane industry that the quality is reliable and can be trusted by both public and private sectors over the country. We are providing in the various types of crane including Gantry Crane and Wall-Mounted Jib Crane.
Electric Hoist can be divided into 2 types below
1. Electric Wire Rope Hoist
2. Electric Chain Hoist
1. Moving with 2-way directions: lifting and lowering. It can be installed permanently at one point and not be able to move to other points. We mostly use as a freight elevator, passenger transportation, or lift the workpiece up or down in the desired position.
2. Moving with 4-way directions: lifting, lowering and moving to the left or right. It will be installed with the I-beam rail so that it can be moved for 4 direcrtions.
3. Moving with 6-way directions: lifting, lowering, moving to the left or right, and moving forward and backward. It will be installed with the crane drive or end carriages. The crane drive unit must be specially made to order according to the structure of each factory has different usable area, width, and length. The production of crane drives can be made according to customer's requirements. There may be added functionality to make it more convenient such as pendant or cabin to increase visibilites. Therefore, making a crane drive unit requires a company with particular expertise to design, manufacture, and install by selecting the appropriate size of electric hoist for the significant job. Many more factors must be taken into account for safety reasons such as safe working load, lifting height, span, column length, characteristics of use, and etc. Moreover, it is important to verify that the manufacturing company hires another subcontractor or not, or there is any after-sales services to support maintenance in the future.

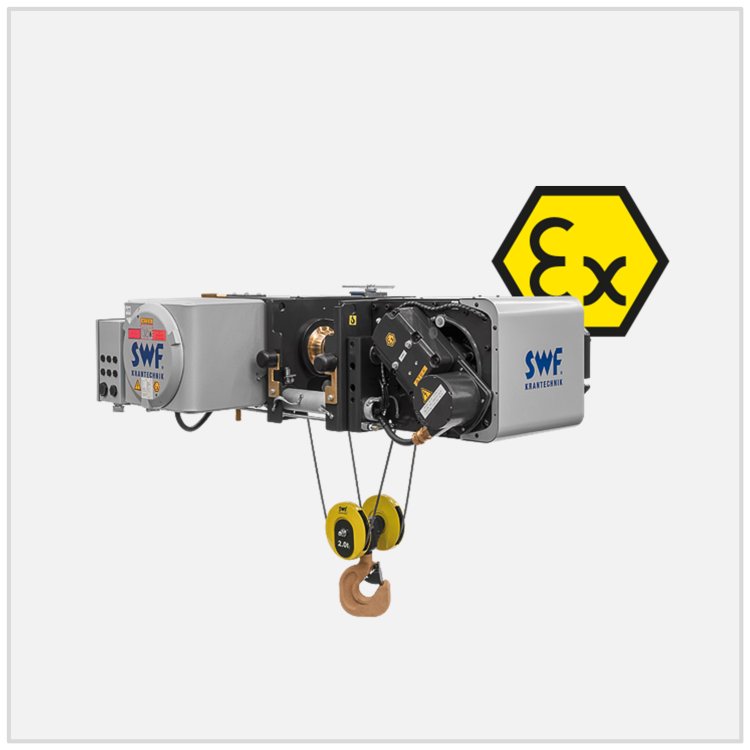

Wire Rope Hoist
A.T.Crane Hoist is now popular in Thailand market, guarantees perfect utilization of usable space and vertical lifting. It is the one of the most highest quality, accuracy and safe work. Here below are the advantages of A.T.CRANE Hoist.
- SEW-EURODRIVE motor, German brand. Famous, durable, and always available spare parts because there is a production base in Thailand to support the maintenance and services.
- Up to 100%ED of cross travel motor (general European motors are 40%ED). The motor can be used continuously, no worry about the burning.
- Protection: IP55, Insulation Class F
- Completed European standard safety equipment such as 4-Step Upper and Lower Limit Switch, Overload Protection, and Thermal Protection.
- The wire rope is imported from England with tensile strength 2160 N/mm2.
- Rope Guider was designed to wrap around the drum to protect the crossing of the groove from careless users (The old design is just
only half part of the drum). - Compact and modern design.
- Reasonable price with 2 years warranty
- The display screen can be added as affordable price while there is a weight reading device inside the control cabinet as standard.
Single girder, up to 20 T.
Double girder, up to 63 T.
up to 100 T.
Single girder trolley. low headroom
up to 12.5 T.
Double girder trolley. up to 80 T

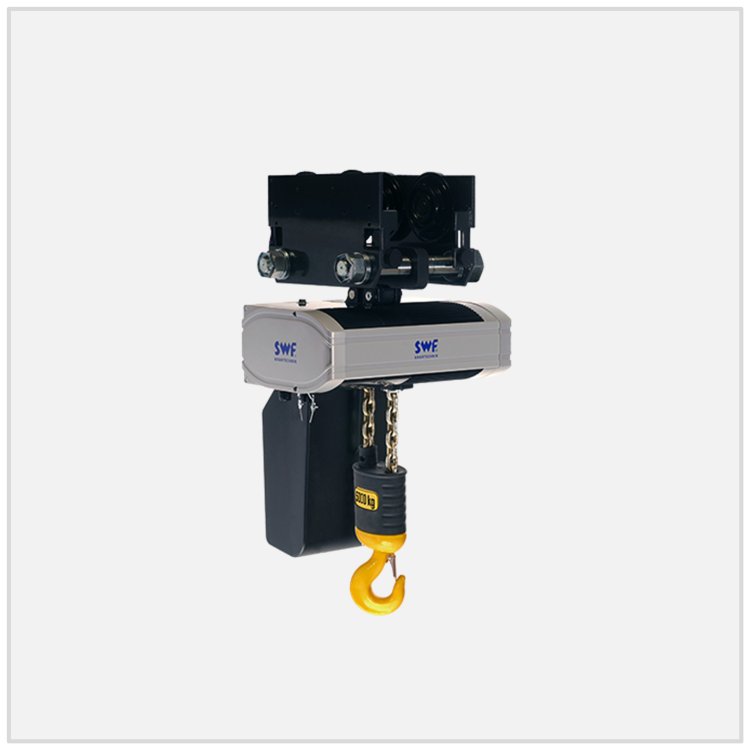

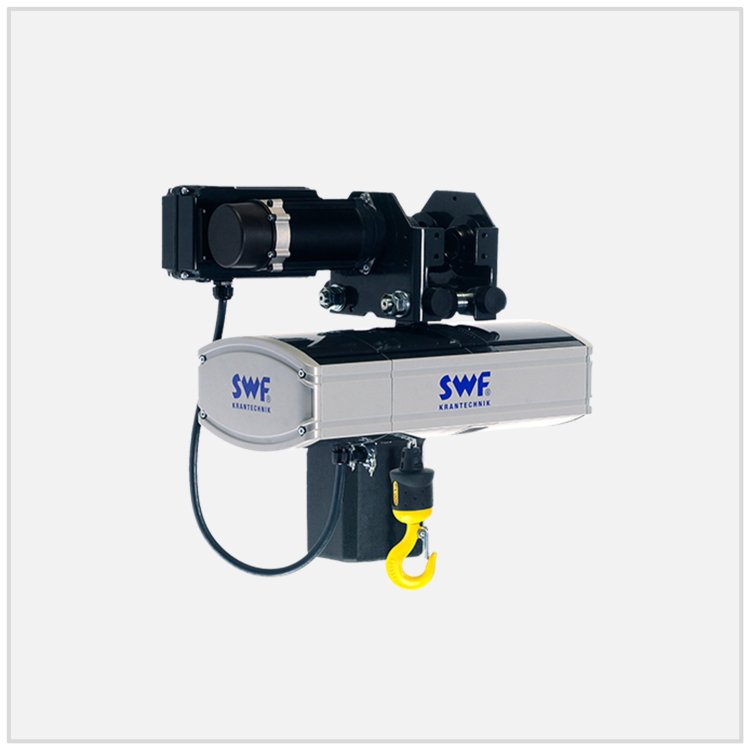

Chain Hoist

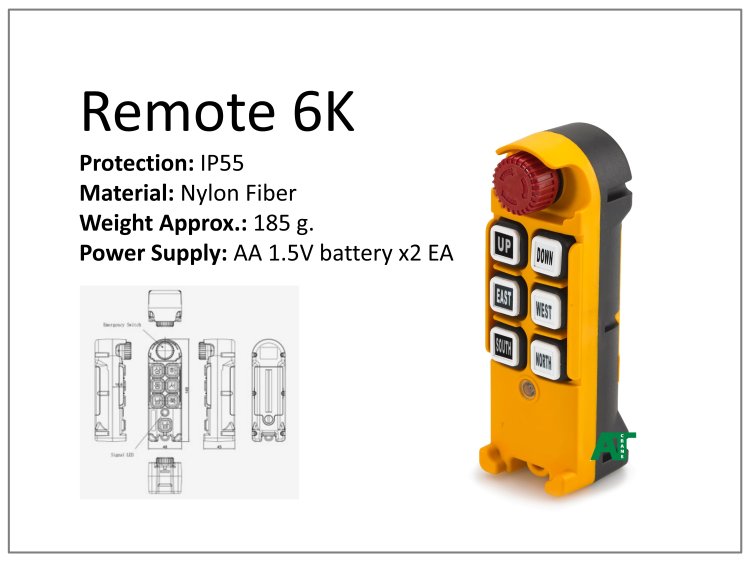

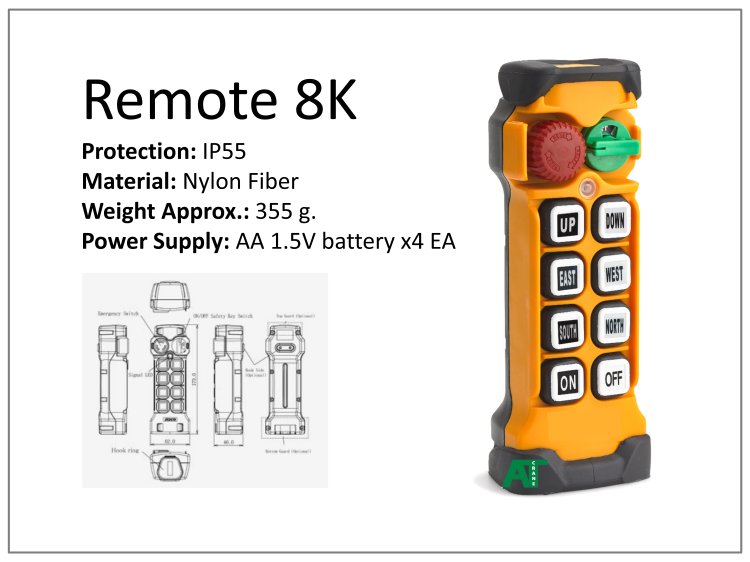

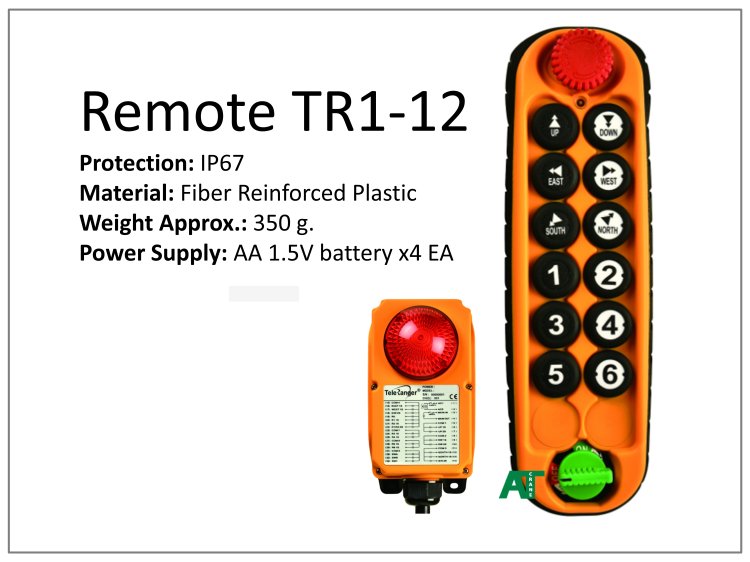

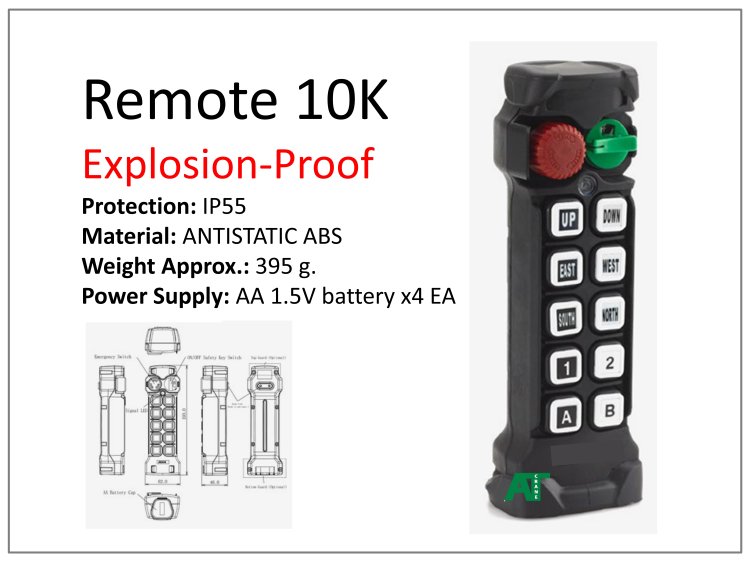

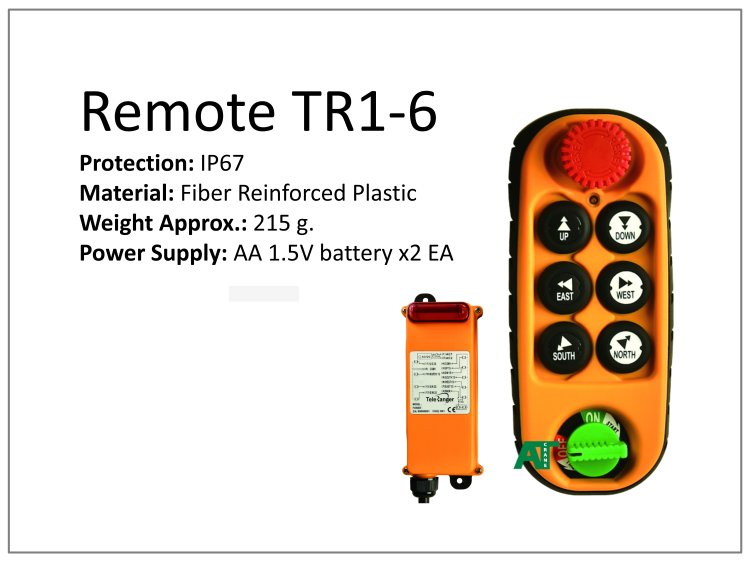

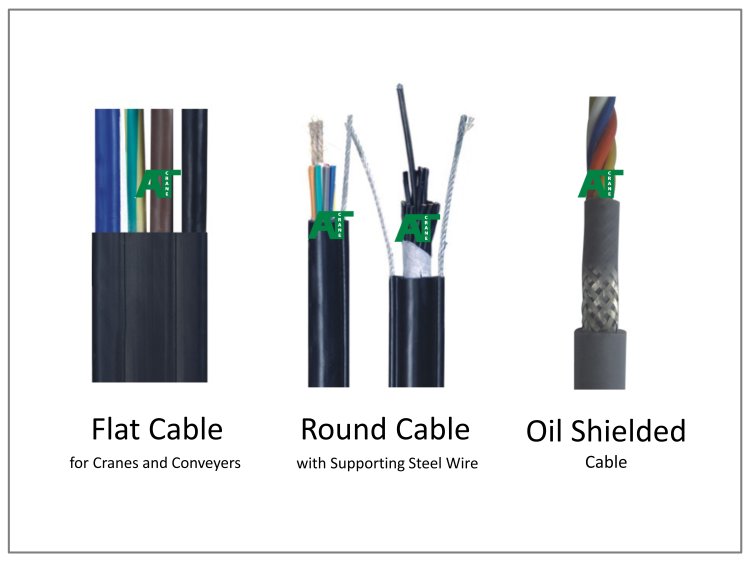

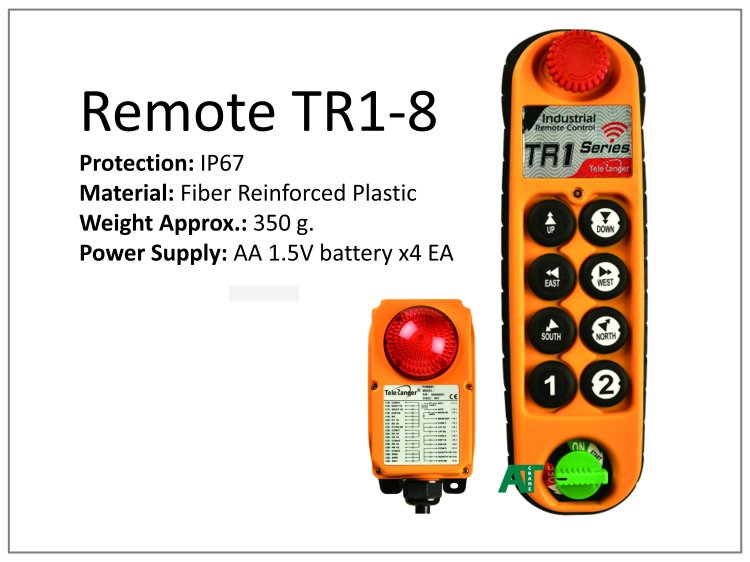

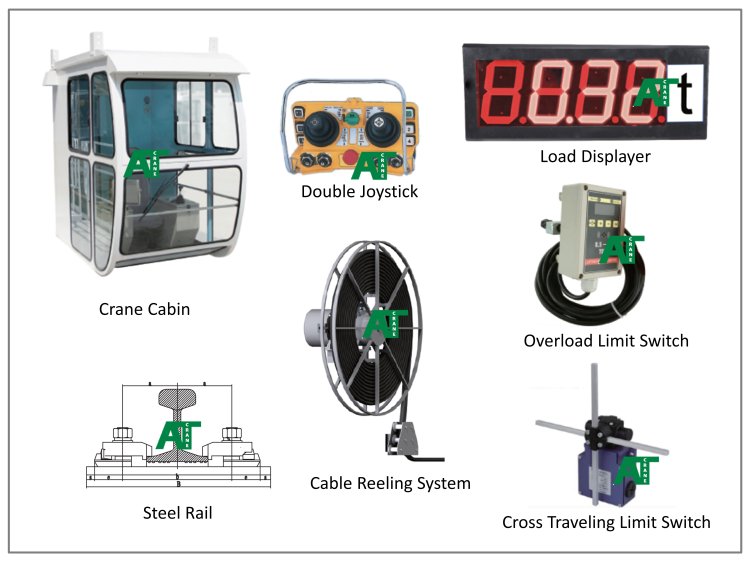

Remote & Crane Accessories

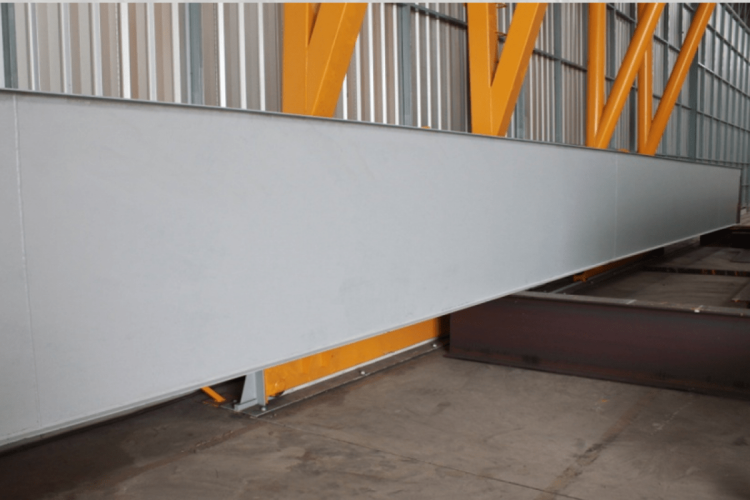

Fabrication Work

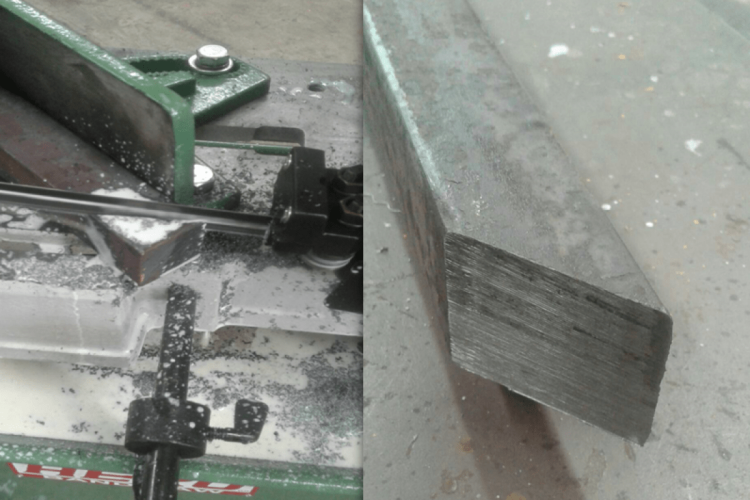

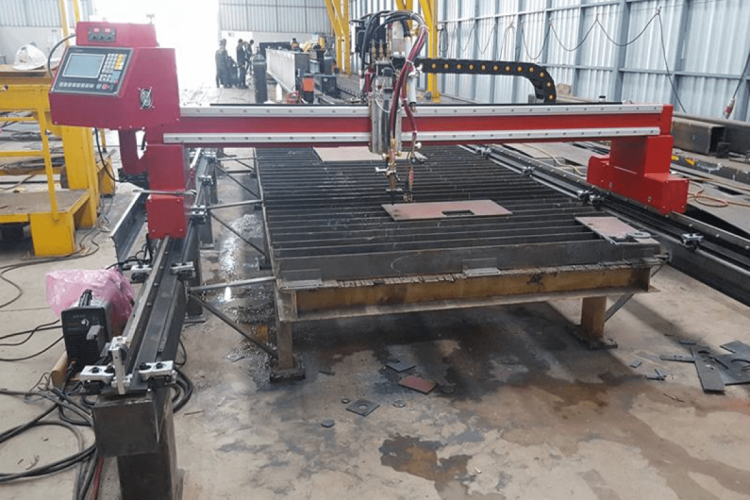

A.T.CRANE factory is located near Ladkrabang Industrial Estate, fully equipped by CNC Plasma Cutter for diaphragm plates, Girder Floor Fabrication System for deflection design as L/1000, Band Saw for square bar cutting as 45 degree, loads for testing, and etc. This makes us easily control the quality in every single step of the manufacturing process to meet the specified standards and needs of customers.

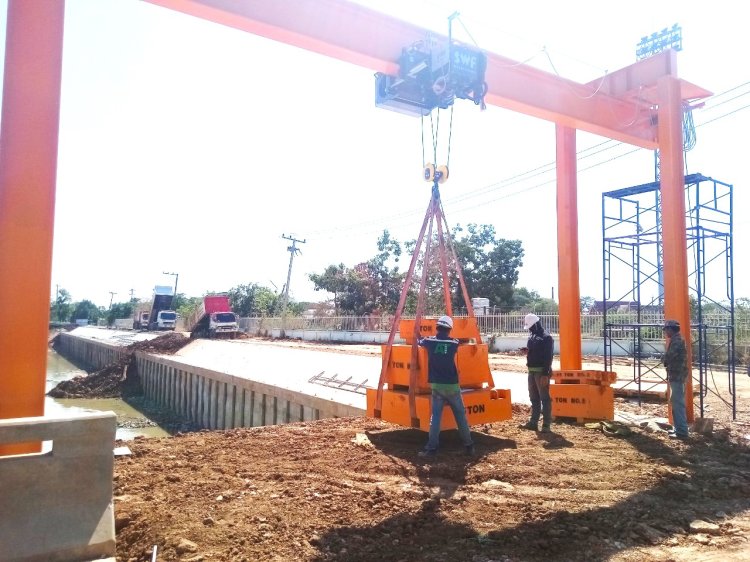

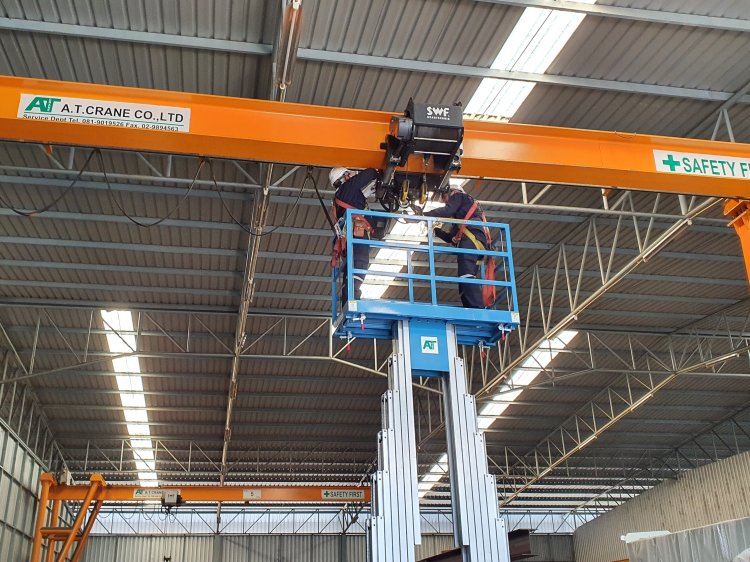

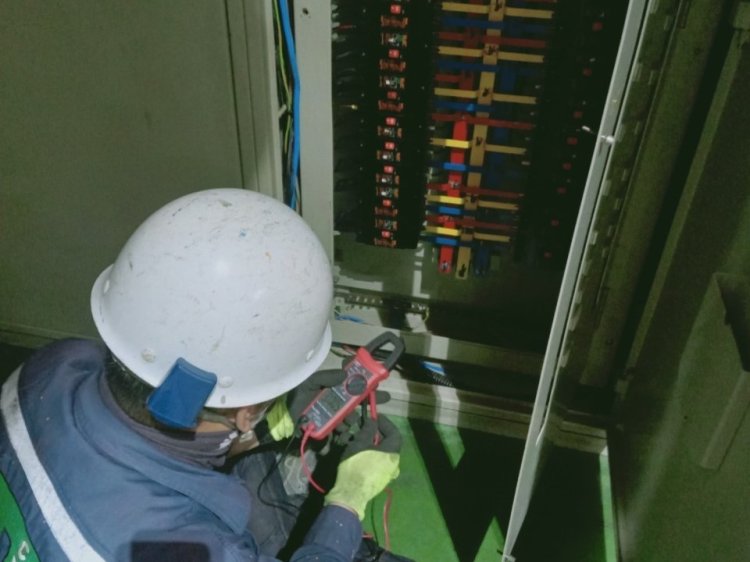

Load Test & Maintenance
After-sales services and maintenances are ones of the most important services which we must take care of customers in a timely manner. We are always get ready to support customer's production line to work continuously. Here below are certifications from the Department of Labour Protection and Welfare.
1. Machine Testing Service Provider: Certification no. 0601-03-2566-0214
2. Crane Testing Service Provider: Certification no. 0602-03-2566-0216
3. Boiler Testing Service Provider: Certification no. 0603-03-2566-0143
We can provide a professional services following:

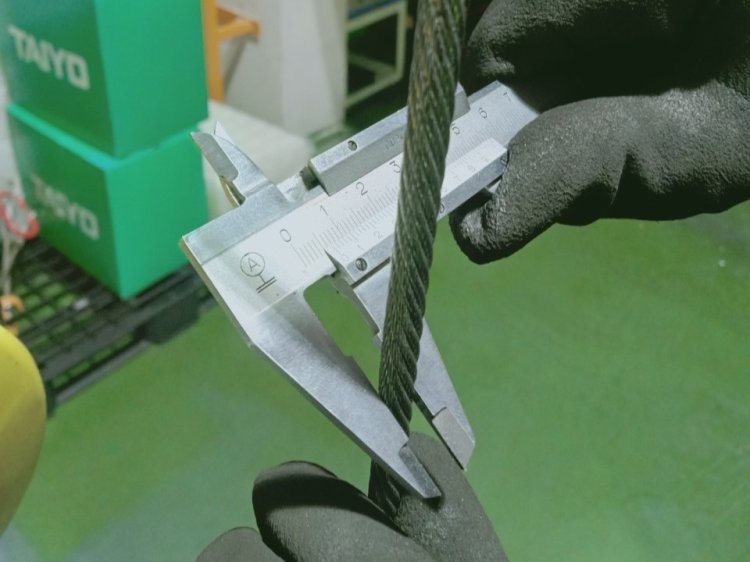

1. Yearly preventive maintenance with report of 50 check-list.
2. Crane inspection, load testing and issue a legal document (Por Jor 1)
- Crane cap. 1-3 Tons, needs once a year (1 time of inspection / 12 months)
- Crane cap. 3-50 Tons, needs twice a year (1 time of inspection / 6 months)
- Crane cap. 50 Tons and above needs 4 times a year (1 time of inspection / 3 months)

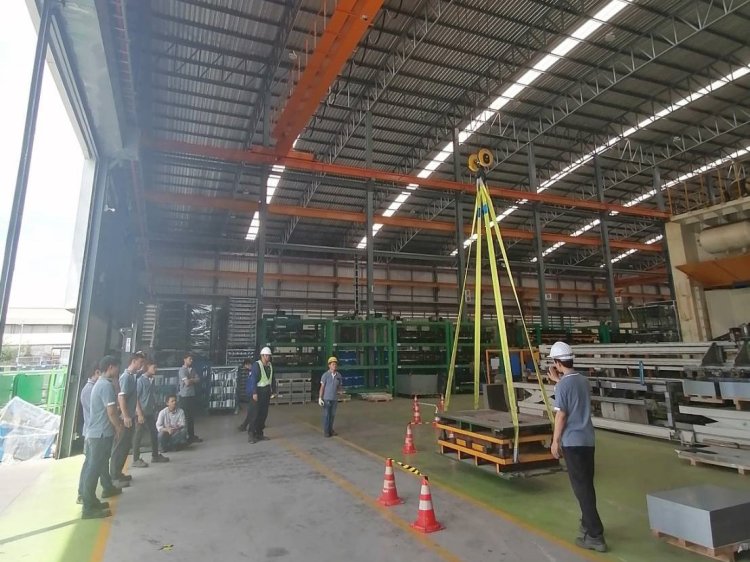

3. Load Testing can be provide as 100%, 110%* and/or 125%* (* conditions apply)

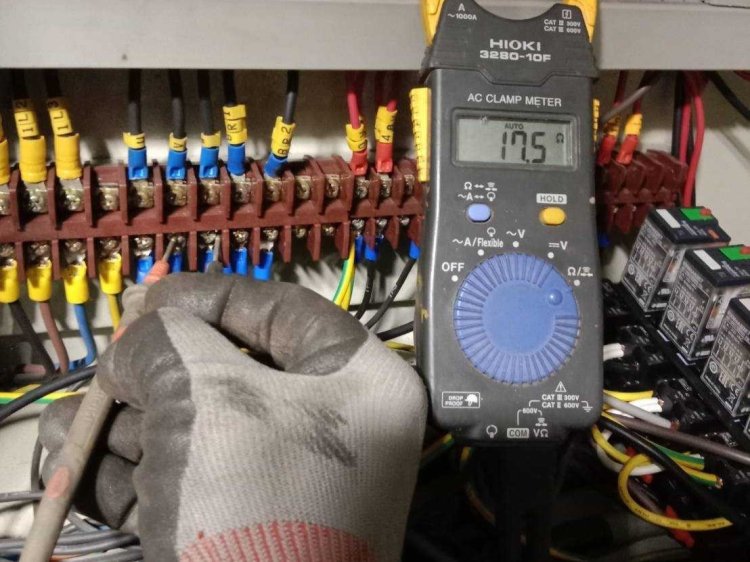

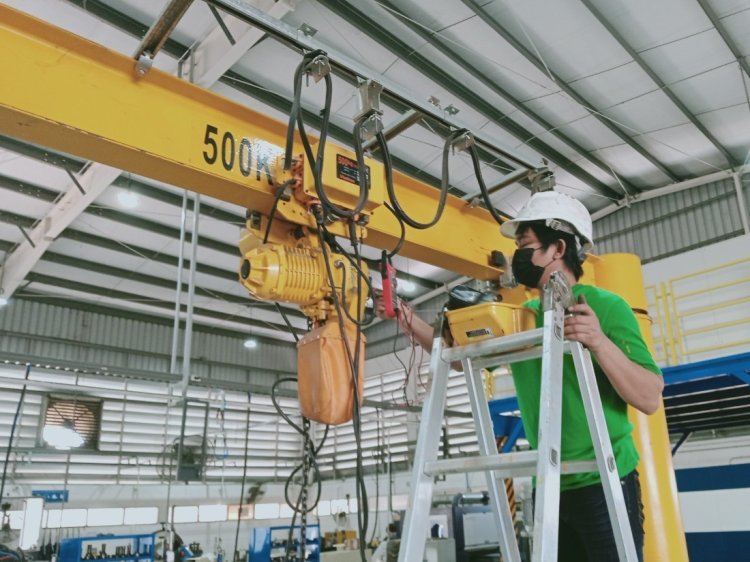

4. Maintenance work in case of hoist, crane, or accessories are being out of order.
5. Uninstallation and relocation of crane
6. Efficiency improvement or adding the length of the runway
7. Crane operation training including crane signal operator, crane operator, and etc.

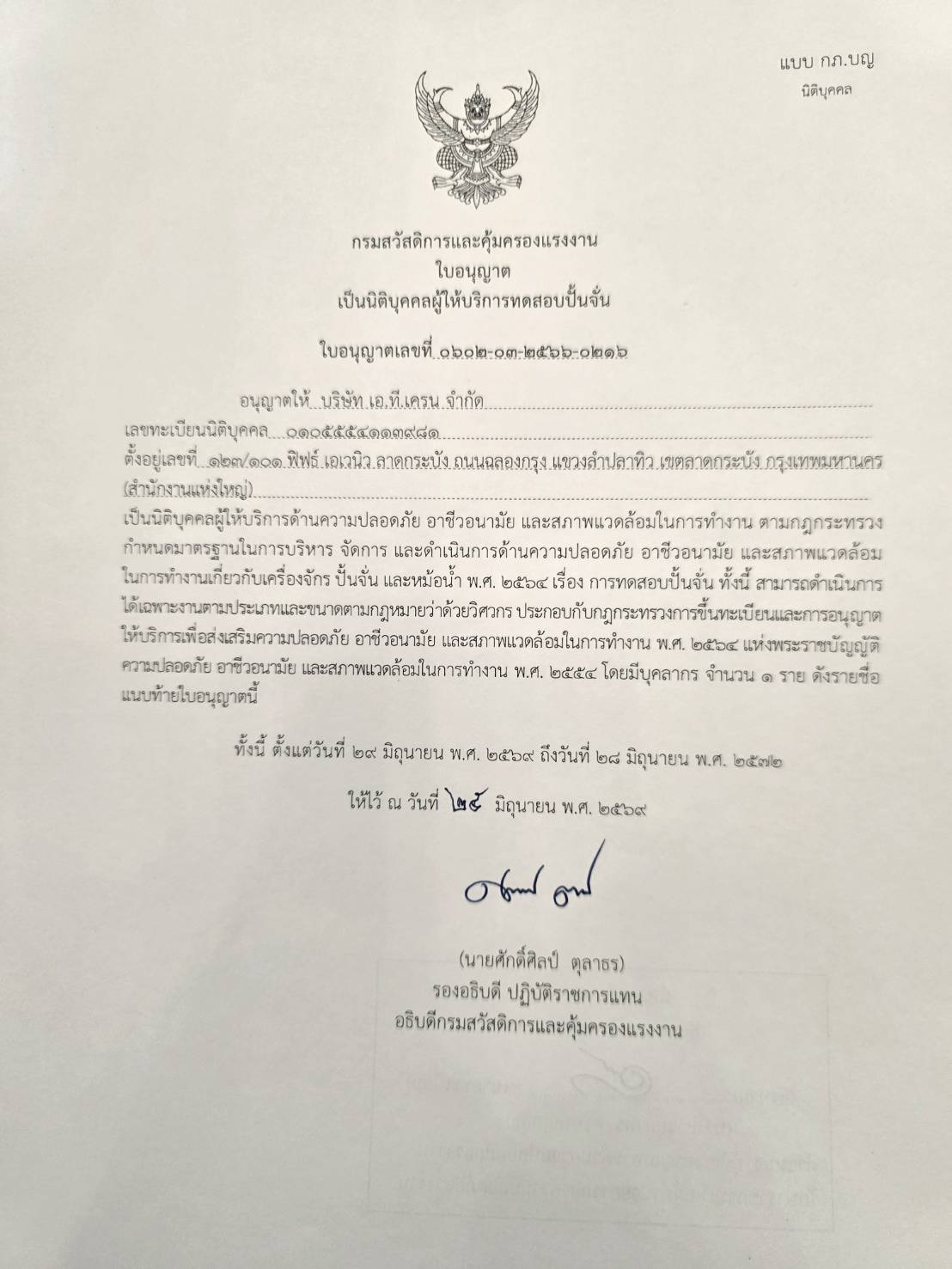

Crane Testing Service Provider: Certification no. 0602-03-2566-0216
Please feel free to contact our call center. Tel. +66-02-130-0834, +66-063-661-9998 or fill in the online request form here
